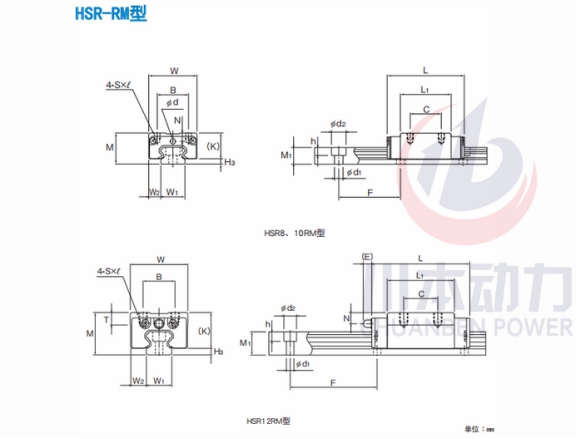

HSR10RM THK滑塊 THK導軌 日本滑塊導軌
外形尺寸 | 高度M | 13 | mm |
寬度W | 20 | mm | |
長度L | 31 | mm | |
LM滑塊尺寸 | B | 13 | mm |
C | 12 | mm | |
S*l | M2.6*2.5 | mm | |
L1 | 20.1 | mm | |
T | - | mm | |
K | 10.8 | mm | |
N | 3.5 | mm | |
E | - | mm | |
潤滑孔d | 2.5 | mm | |
油嘴 | - | mm | |
H3 | H3 | 2.2 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 10 | mm |
W2 | 5 | mm | |
高度M1 | 7 | mm | |
孔距F | 25 | mm | |
d1*d2*h | 3.5*6*3.3 | mm | |
長度*Max | 995 | mm | |
基本動額定載荷 | C | 1.96 | kN |
基本靜額定載荷 | C0 | 3.82 | kN |
靜態容許力矩 | MA單滑塊 | 0.0123 | kN-m |
MA雙滑塊 | 0.0716 | kN-m | |
MB單滑塊 | 0.0123 | kN-m | |
MB雙滑塊 | 0.0716 | kN-m | |
MC單滑塊 | 0.0162 | kN-m | |
重量 | LM滑塊 | 0.025 | kg |
LM軌道 | 0.45 | kg/m |
